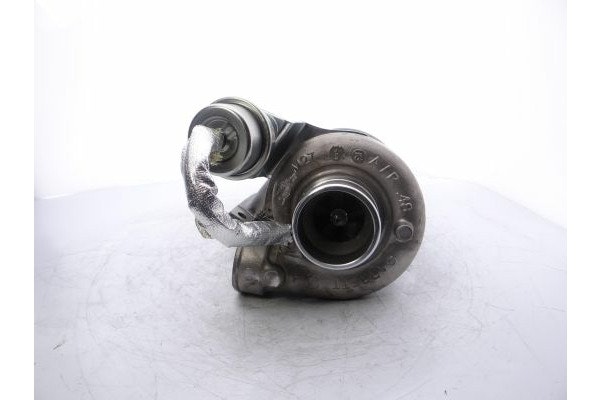

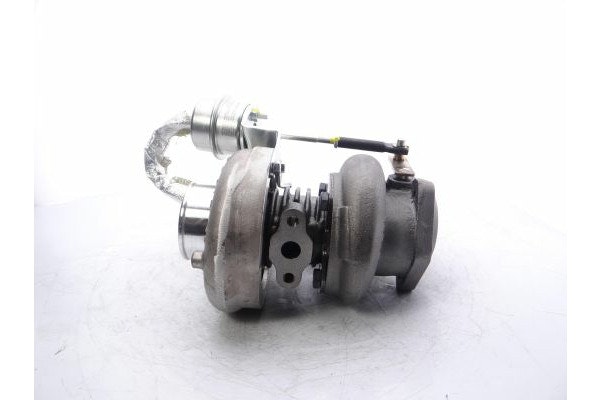

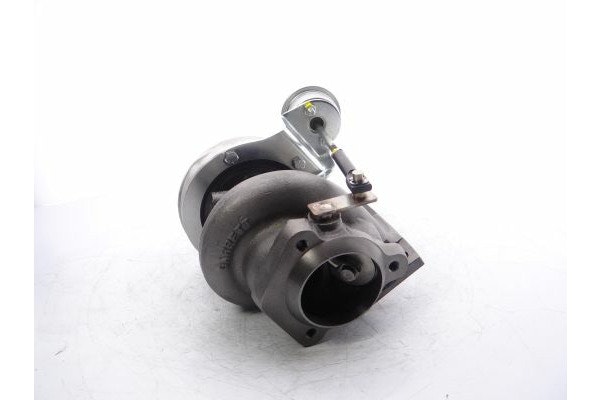

452073-5005S Garrett TB2565 renoverad bytesturbo !
Detta är en renoverad bytesturbo och din gamla skall i retur.
Motorkoder som denna turbo sitter på :
- 1004
- TD40
Turbonummer / Ersättningsnummer :
- 452073-5003S
- 452073-5004S
- 452073-5005S
- 452073-5003
- 452073-5004
- 452073-5005
- 452073-0003
- 452073-0004
- 452073-0005
Originalnummer Perkins / Volvo
- 11701612
- 2674A086
- 9011701612
Packningssats ingår vid köp utav denna turbo.
Kan ni ej returnera den gamla så tillkommer det en avgift på 1500 inkl moms.
Turbonummer / Originalnummer / Turbofakta :
Part Number | 452073-5005S |
Previous Version | 452073-0005, 452073-5 |
OE number | 9011701612, 11701612, 2674A086 |
Description | Perkins Various, Volvo Penta |
CHRA | 443854-0122 (443854-5122S, 87800063) Finns att köpa nedan . |
Turbo Model | TB2565 |
Engine Manufacturer | Perkins |
Displacement | 4.0L, 4000 ccm, 4 Cylinders |
KW | 112 |
Angle α (compressor housing | 205º |
Angle β (turbine housing) | 125º |
Bearing Housing | 435349-0011 (435349-0005) $69.00 NEW IN STOCK |
Turbine Wheel | 435406-0003 (Ind. 53. mm, Exd. 41.7 mm, Trm 62, 10 Blades) $111.93 NEW IN STOCK |
Comp. Wheel | 446335-0012 (Ind. 38.2 mm, Exd. 54. mm, Trm 50, 5+5 Blades) $80.00 NEW IN STOCK |
Back plate | 430735-0001 (430612-0003) (1100025300) $16.84 NEW IN STOCK |
Heat shield Number | 443594-0001 (1100025341) $13.84 NEW IN STOCK |
Repair Kit | 709143-0001 (1100025761) $69.00 NEW IN STOCK |
Turbine Housing | 413567-0038 $228.63 |
Compressor Cover | 434288-0017 |
Turbine Housing AR | 0.49 |
Actuator | 432340-0017/432340-0064 |
Gasket (turbine inlet) | 409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port) $9.99 |
Gasket (turbine outlet) | 210225 (Stainless Steel) |
Gasket (oil outlet) | 413709-0001 (Paper) $5.11 |
Manufacturer | Honeywell-Garrett |
Applications
Perkins Ackerman Earth Moving Loader
Volvo-Penta Marine Various
