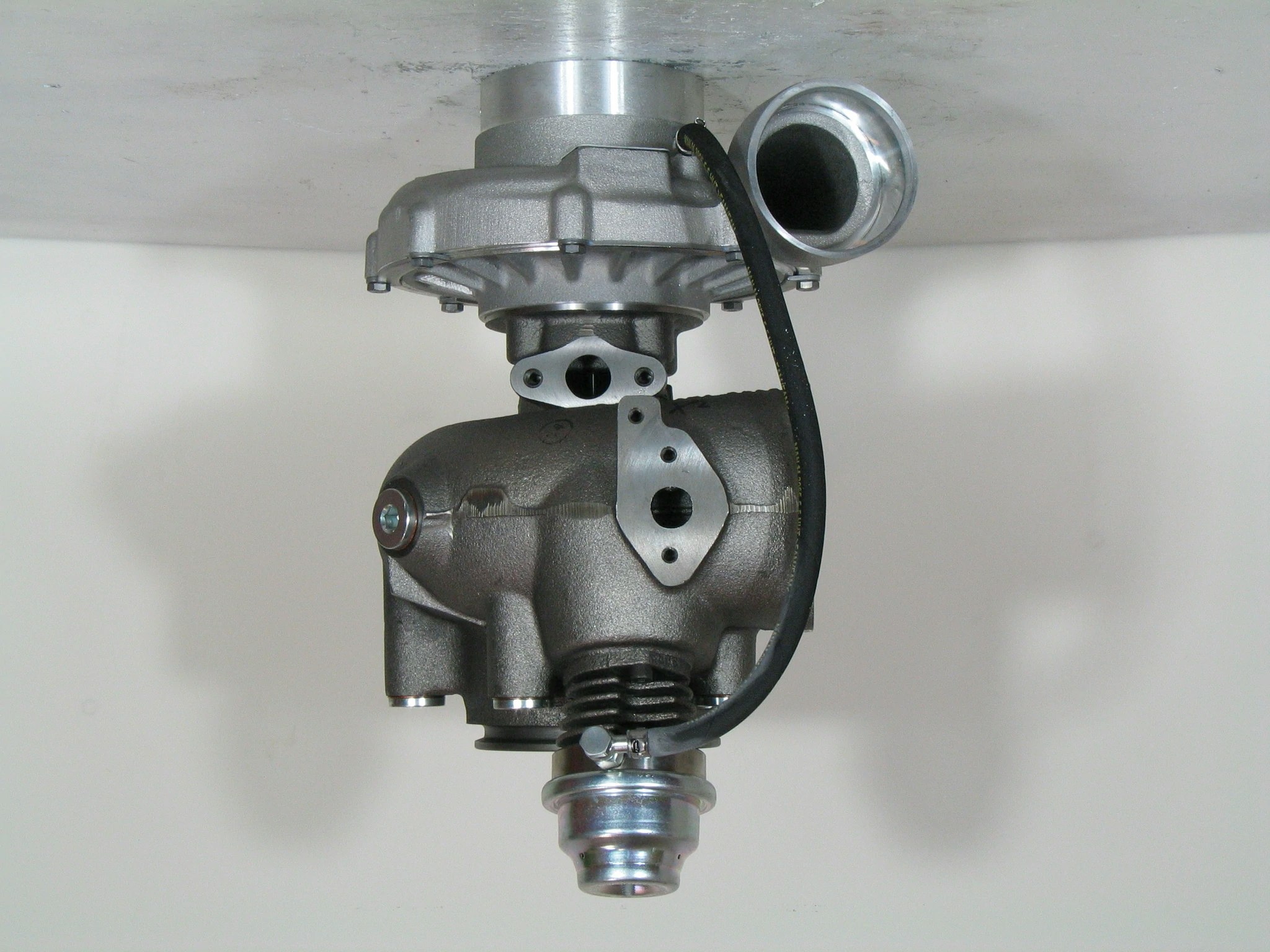

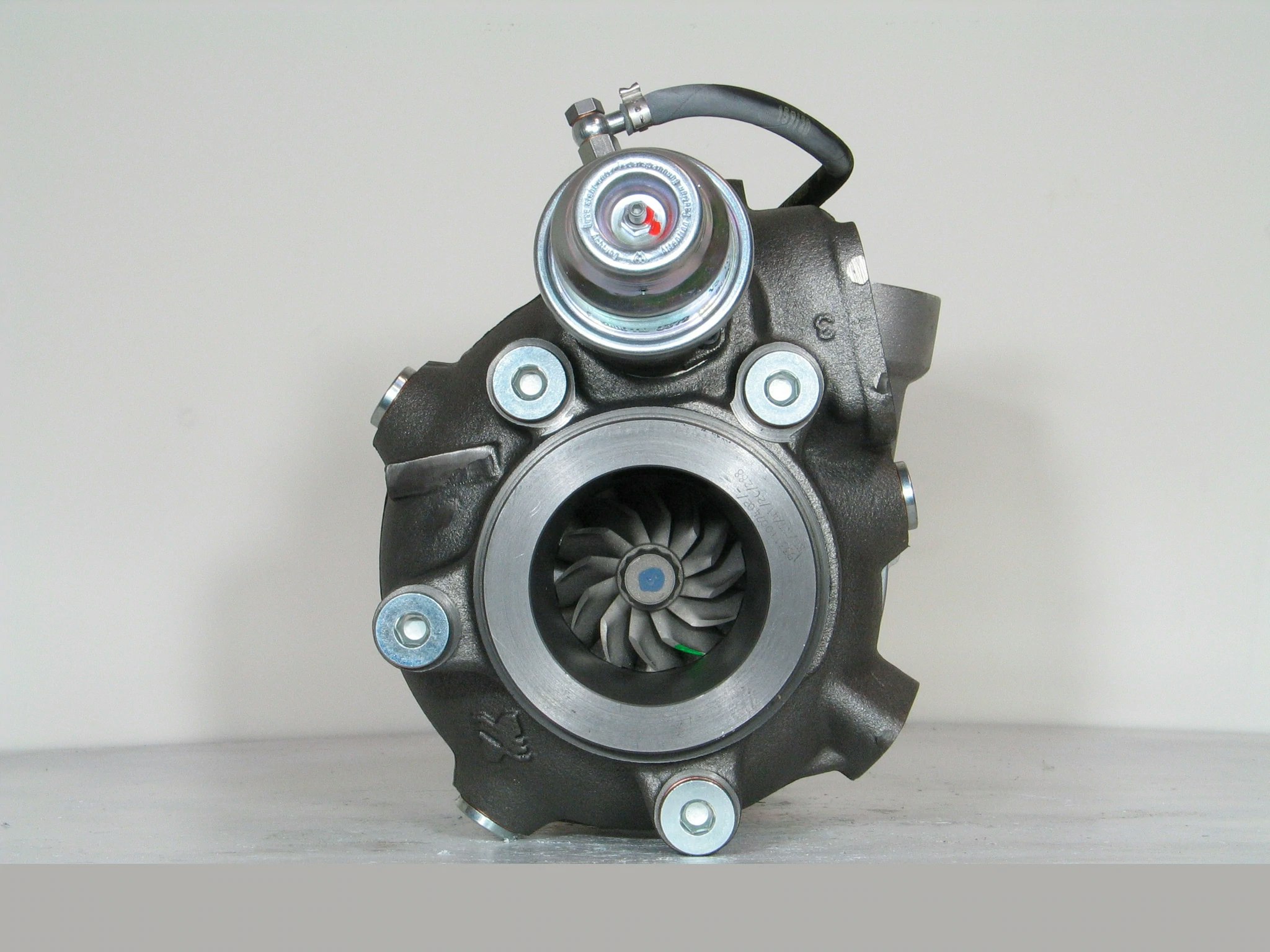

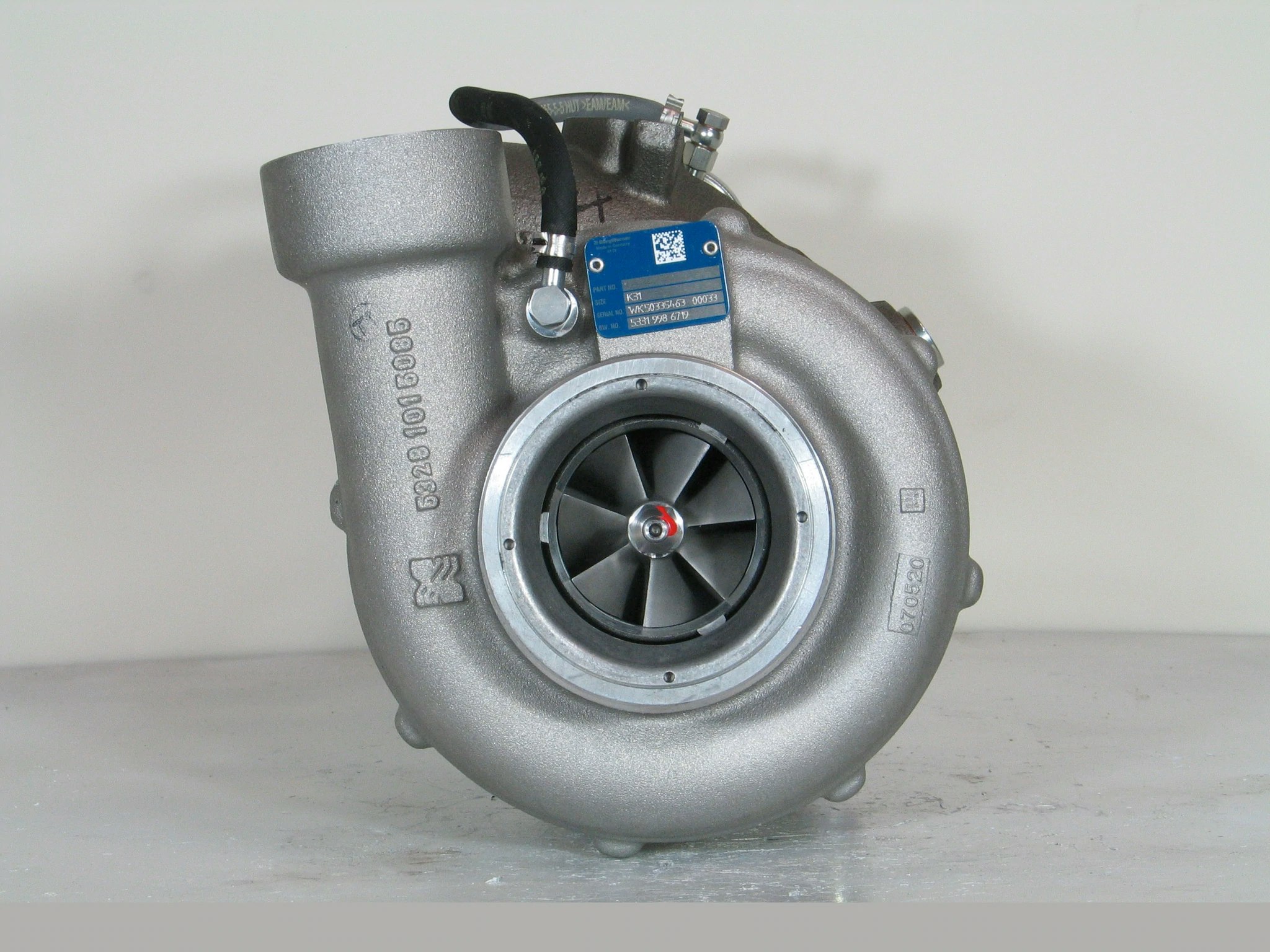

53319986719 BorgWarner Volvo penta TAMD74P OEM : 3802119,3802139,3827195,3837691 ( Bytesturbo )
- 24 000 kr
53319986719 BorgWarner Volvo penta TAMD74P OEM : 3802119,3802139,3827195,3837691 ( Bytesturbo ) ( Beställningsvara 2-3 dagars levtid )Fabriksny turbo som tas in
Artikelnummer:
53319986719BT
53319986719 BorgWarner Volvo penta TAMD74P OEM : 3802119,3802139,3827195,3837691 ( Bytesturbo ) ( Beställningsvara 2-3 dagars levtid )
Fabriksny turbo som tas in i vårat bytessystem för att på sikt kunna erbjuda renoverad bytesturbo.
Vi kan även renovera dessa utan problem.
Information som turbonummer / OEM nummer osv :
| Part Number | 53319986719 |
| Previous Version | 5331-998-6719, 5331 998 6719, 53319886704, 53319886719 |
| OE number | 30-35703, 3035703, 3802119, 3802139, 3827195, 3837691 |
| Year | 2002-09 |
| Description | Lugger Marine, Ship |
| Manufacturer Part Number | 53319706704, 53319706719, 5331-970-6704, 5331-970-6719 |
| CHRA | 53317100012 (5331-710-0012) |
| Turbo Model | K31-3767OOAKB9.61RYCSB |
| Engine | TAMD74P, D7M+ |
| Engine Manufacturer | Volvo-Penta |
| Capacity | 7.3L, 7300 ccm |
| KW | 350/490 |
| RPM Max | 2600 |
| Angle α (compressor housing) | 70° |
| Angle β (turbine housing) | 90° |
| Bearing Housing | 53331500008 (53331500014)(Oil Cooled) |
| Turbine Wheel | 53311205004 (53311205008)(Ind. 77. mm, Exd. 86. mm, Trm 12.8, 11/12 Blades)(1100016178) |
| Comp. Wheel | 53311232004 (53311232014, 53331232019)(Ind. 71. mm, Exd. 102. mm, Trm 7.1, 7+7 Blades, Superback) |
| Compressor back plate | 53331515714 (53331515713) |
| Heat shield | 53311652001 |
| Repair Kit | 53277110076 (53317110005, 53317110003)(1301031750, 209290001, 5000040026) |
| Turbine Housing (water-cooled) | 53311007400 |
| Actuator | 58061100372 (58061100368, 58061100364) |
| Waste gate valve | 58061100364 (58061100368) |
| Settings Waste gate (pressure) | 2 45 bar |
| Settings Waste gate (lift shaft) | 2.00 mm |
| Gasket Kit | 215197 |
| Gasket (turbine inlet) | 409038-0000 (132040, 202873, 205396, 3500683, 1S4295, 9749, 210017-0000)(1900000003) |
| Gasket (turbine outlet) | 210239 |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 201048, 129120, 210018-0000, 210060-0000, 1S4810, 51914, 148062, 9738, 9988, 3519763, 3500682, 3709738, 311585)(1900000025) |
| NOTE | Inter cooler; restricted to Volvo-Penta; replacement for K31-6704 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
| Condition | Fabriksny |
Applications
2002-09 Volvo Penta Ship with TAMD74P, D7M+ Engine
