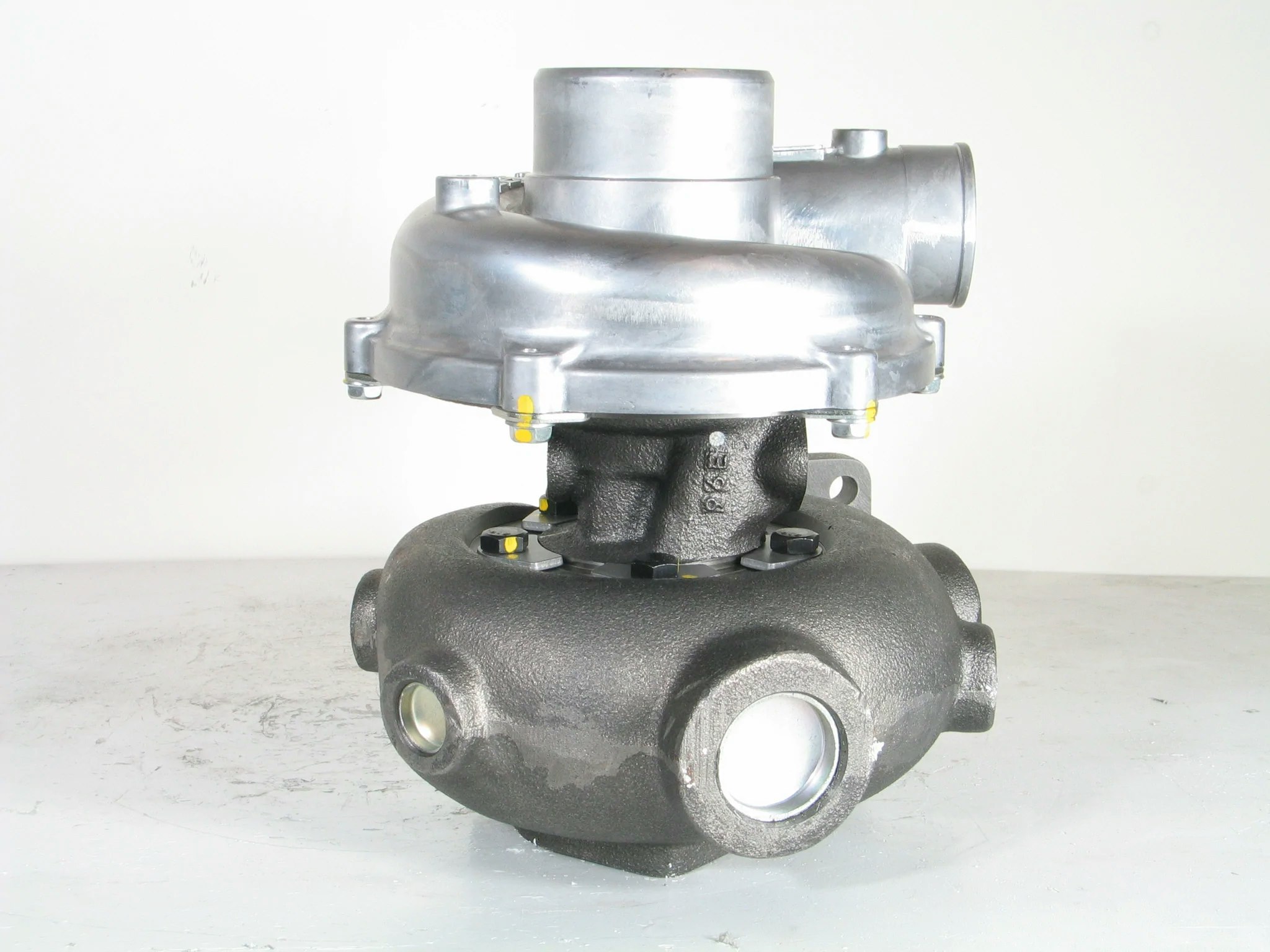

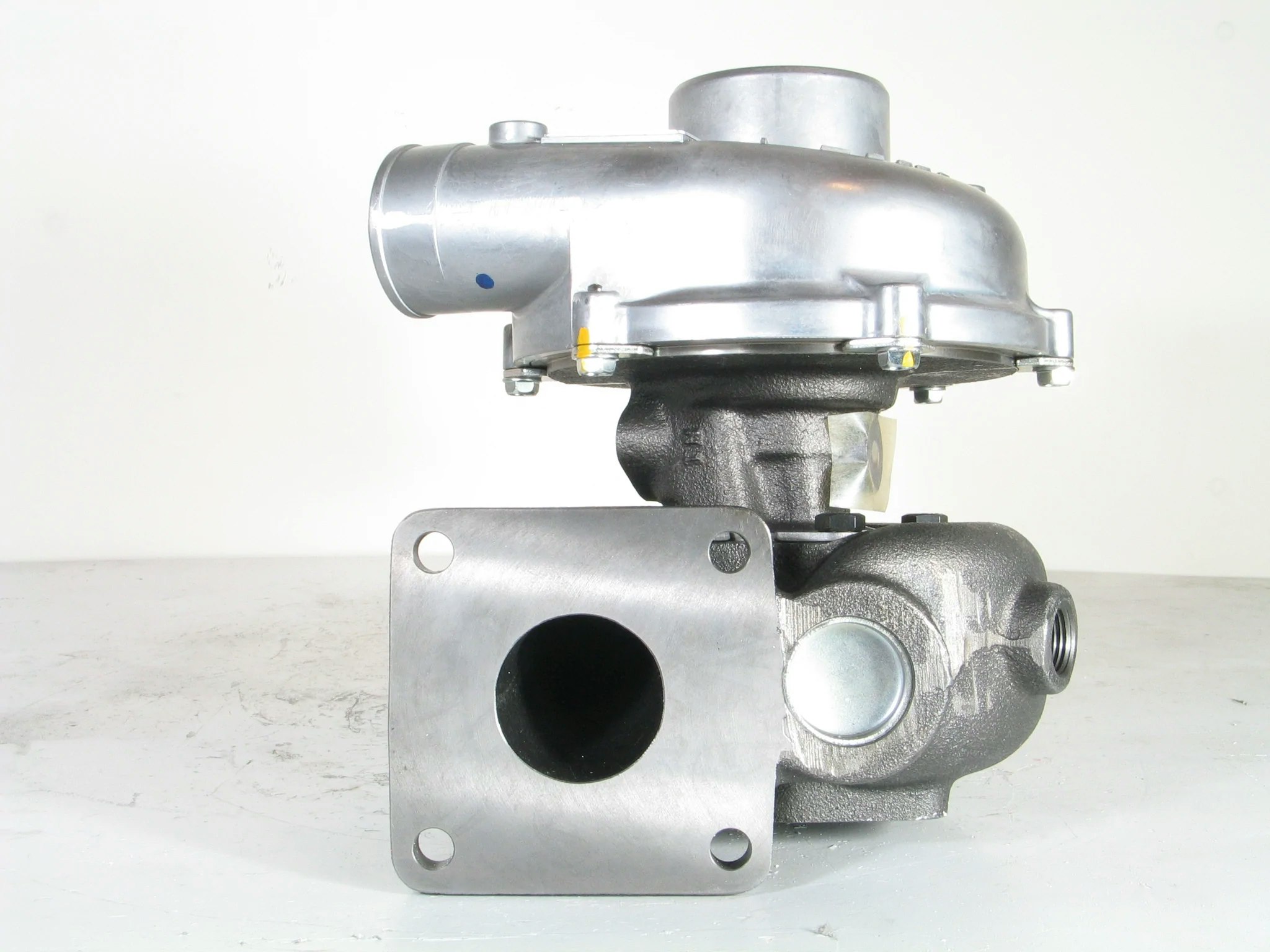

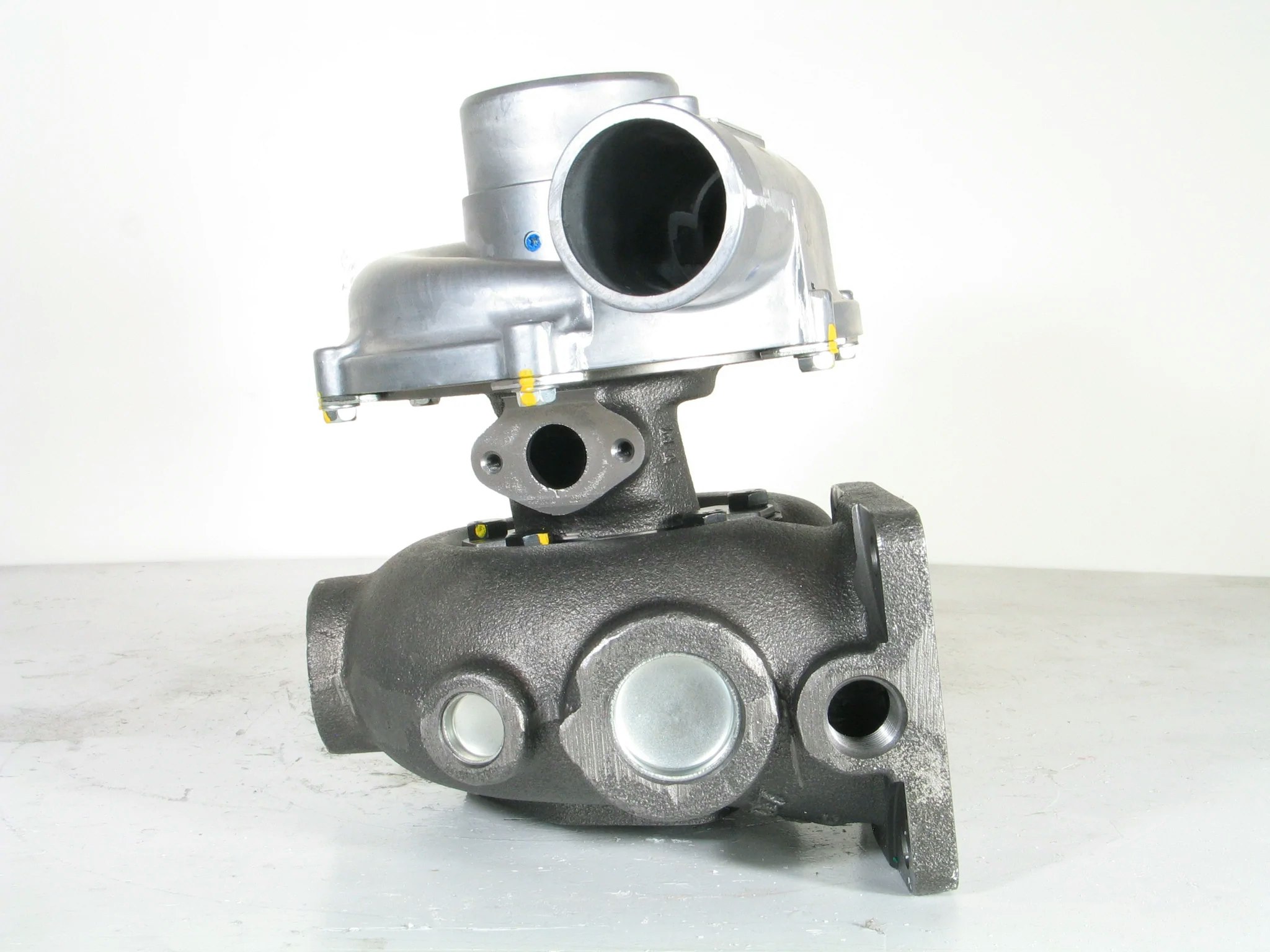

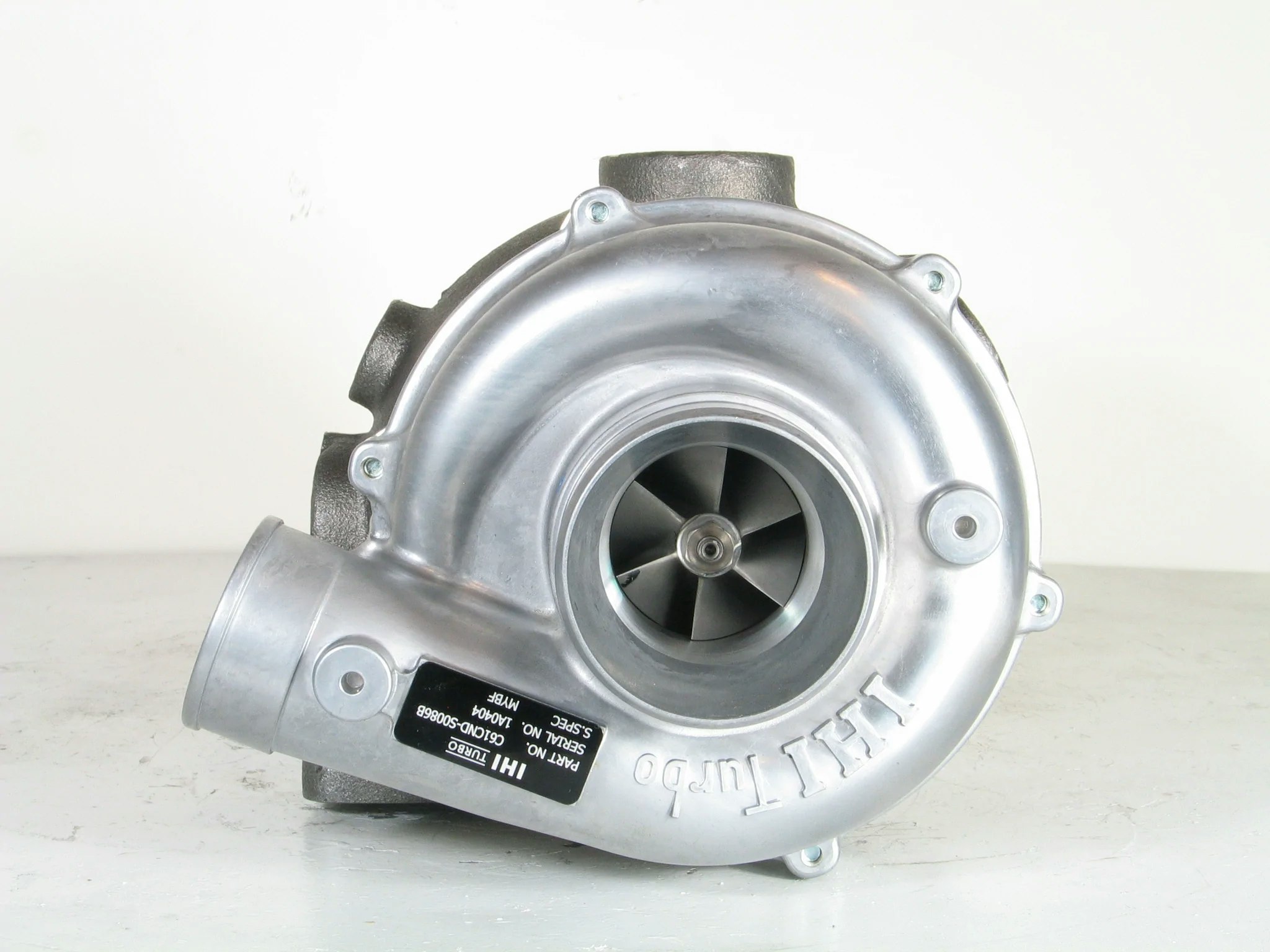

MYBF IHI fabriksny original turbo. Oem nummer : 119172-18010, 11917218010, 119172-18011, 11917218011 ( Bytesturbo )

  • 21 500 kr

MYBF IHI fabriksny original turbo. Oem nummer : 119172-18010, 11917218010, 119172-18011, 11917218011 ( Bytesturbo ) ( Beställningsvara 2-3 dagars levtid )&

I lager.
Artikelnummer: MYBF
Dela

MYBF IHI fabriksny original turbo. Oem nummer : 119172-18010, 11917218010, 119172-18011, 11917218011 ( Bytesturbo ) ( Beställningsvara 2-3 dagars levtid )

Denna tas in som fabriksny i bytessystemet för att på sikt kunna erbjuda renoverad bytesturbo.

Vi kan även renovera dessa turbos.

Turbonummer / originalnummer / Turbofakta :

Part Number: VA240086

Short Spec.: MYBF

Interchangeable Number: C61CND-S0086B, VB240086, VC240086, VD240086

OEM Number: 119172-18010, 11917218010, 119172-18011, 11917218011

Turbo Model: RHC61W, RHC61W-1183P18NWBRLL4715CC

Manufacturer: IHI Turbo - CloverTurbo


Year: 1987-01

Engine: 4LH-HTE

Displacement: 3455 ccm

Fuel: Diesel

Power: 140 HP


Angle α (Compressor Housing): 70°

Angle ß (Turbine Housing): 182°

Back Plate: NN193012

Bearing Housing (Water Cooled): NH163331 (831211260)(831211090)

CHRA: NZ853147

Compressor Cover: NH264962 (NH261082)

Compressor Wheel: NH265520 (170268)(NH2655207)(Ind. 51.3 mm, Exd. 69.97 mm, 6+6 Blades, Super Back)

Gasket (Oil Outlet): 210161 (Paper)

Gasket (Turbine Inlet): 210235 (Stainless Steel)

Heat Shield: NH163329

Insulator, Silencer: NH163329

Repair Kit: GF169846NS/NH169843 (509T-538)

Turbine Housing (Water Cooled): NH167586 (NE967440)

Turbine Housing A/R: 18

Turbine Wheel: NH261101 (NH261120)


Application:

1987-01 Yanmar Marine with 4LH-HTE Engine
