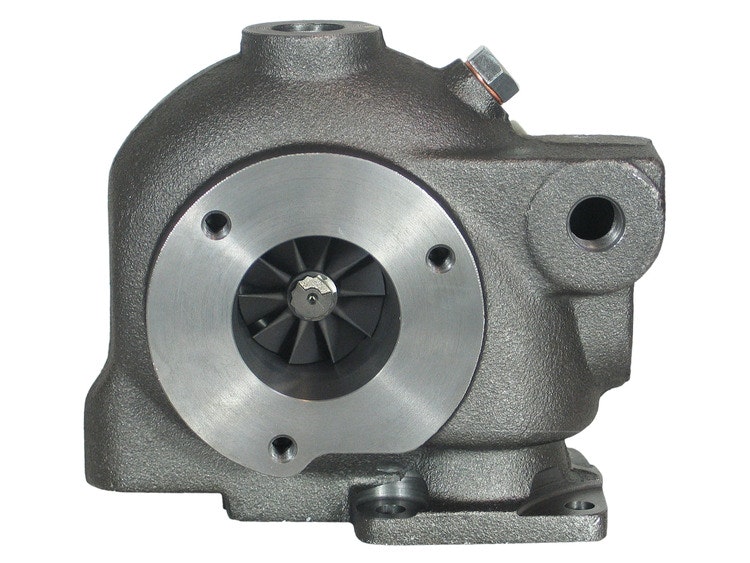

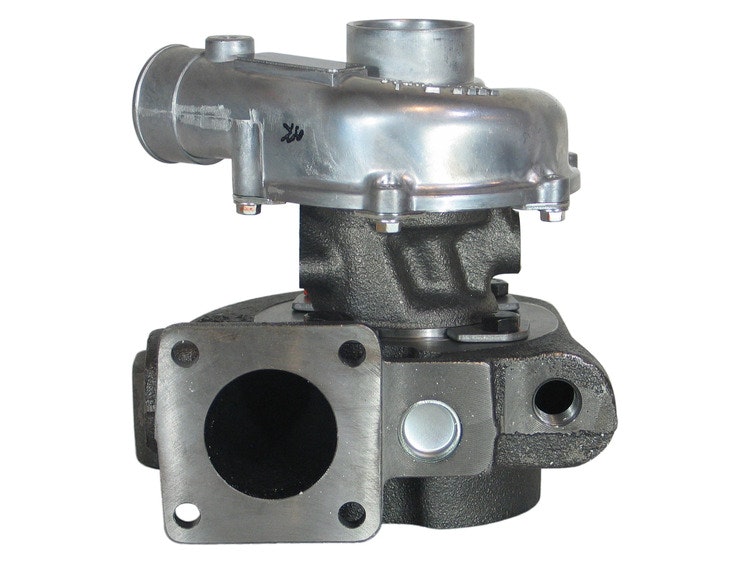

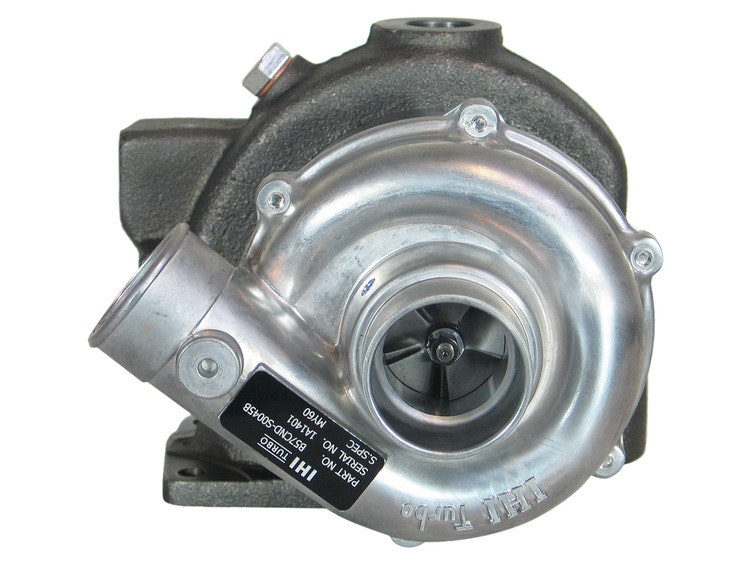

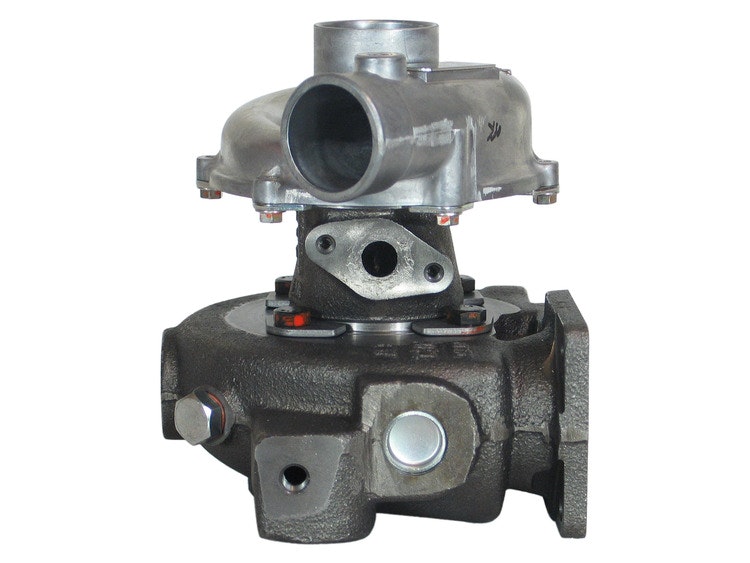

MY60 / MY31 IHI fabriksny original turbo. ( Bytesturbo )

MY60 IHI fabriksny original turbo som tas in som bytesturbo.( Beställningsvara 2-3 dagar )

Denna skall gamla turbon i retur på . Annars tillkommer det en avgift på 1500 inkl moms och man skall då välja fabriksny utan   stomme.

Fabriksny utan stomme finns relaterad under .

Oem nummer :12947418000,129474-18000,12947418001,129494-18001,5T-615

Fits the following:

 Part Number: NB150045
Short Spec.: MY60
OEM Number: 12947418000, 129474-18000, 12947418001, 129494-18001, 5T-615
Interchangeable Number: B57CND-S0045B, MY31, NN130042
Turbo Model: RHB52HW, RHB52HW-90004HP12NWBRL348C
Manufacturer: IHI Turbo - CloverTurbo

Year: 1983-89
Engine: 4JH2-THE, 4JH-HTE/DTE
Displacement: 1644 ccm, 4 Cylinders
Power: 66 HP

Angle α (Compressor Housing): 90°
Angle ß (Turbine Housing): 218°
Back Plate: NN133021 (1450052300, 64T-002)
Bearing Housing: NN133359 (Oil Cooled)
CHRA: NZ853949
Compressor Cover: NN134092
Compressor Wheel: NN136612 (Ind. 31.5 mm, Exd. 52.5 mm, Trim 40, 5+ 5 Blades, Flat Back)
Gasket (Oil Outlet): 210636 (2445067, Paper)
Gasket (Turbine Inlet): 210276 (2445051, Stainless Steel)
Gasket (Turbine Outlet): 210828
Heat Shield: NN137055 (38T-013)
Repair Kit: CN139921NS/NN139921A/NN139922 (509T-545)
Turbine Housing (Water Cooled): NN139605
Turbine Housing A/R: 12
Turbine Wheel: NN131572 (Ind. 44. mm, Exd. 52.45 mm, 10 Blades)

Application:
1983-89 Yanmar Marine with 4JH-HTE/DTE Engine

Denna turbo ingår i vårat bytessystem och vi måste ha in eran gamla turbo i retur !
