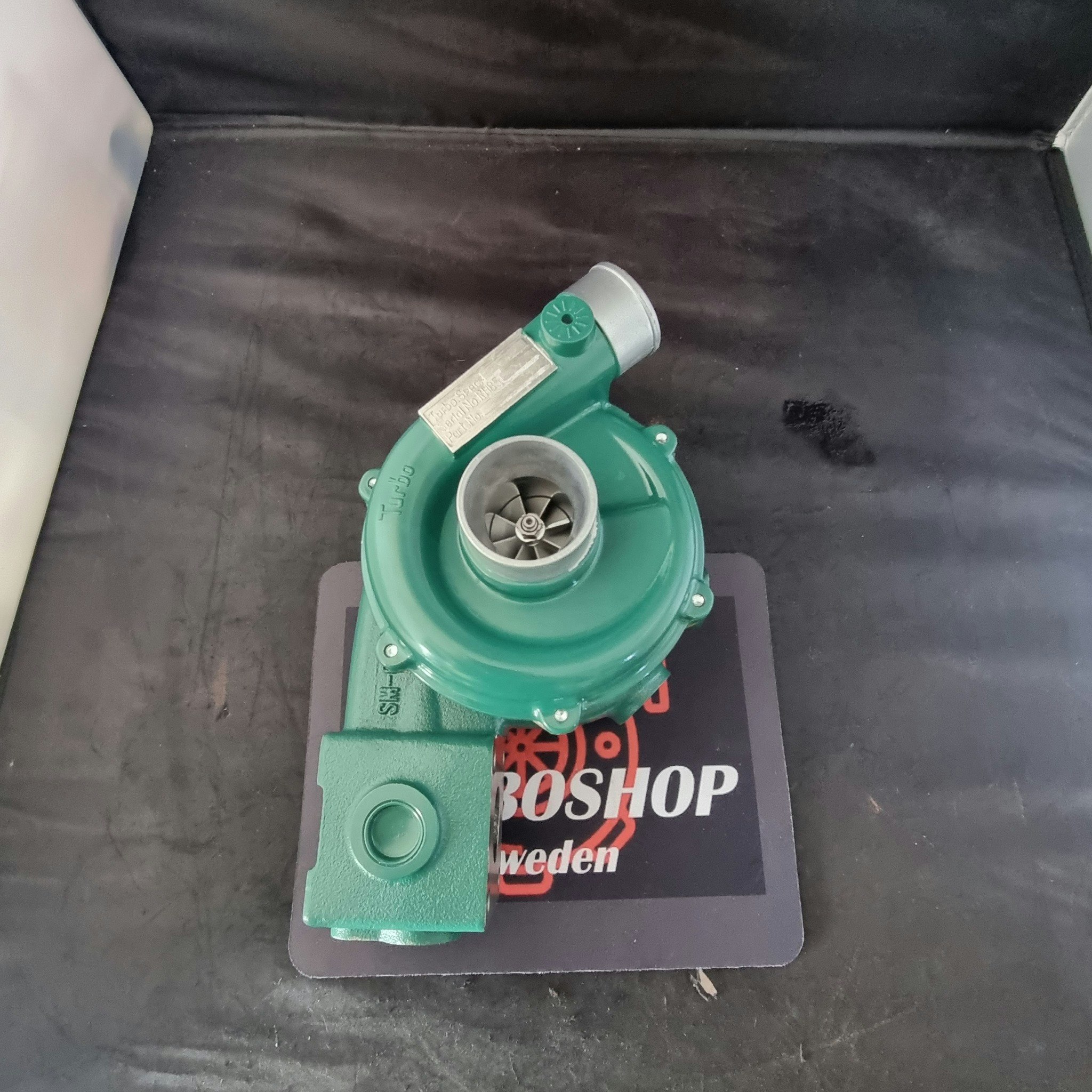

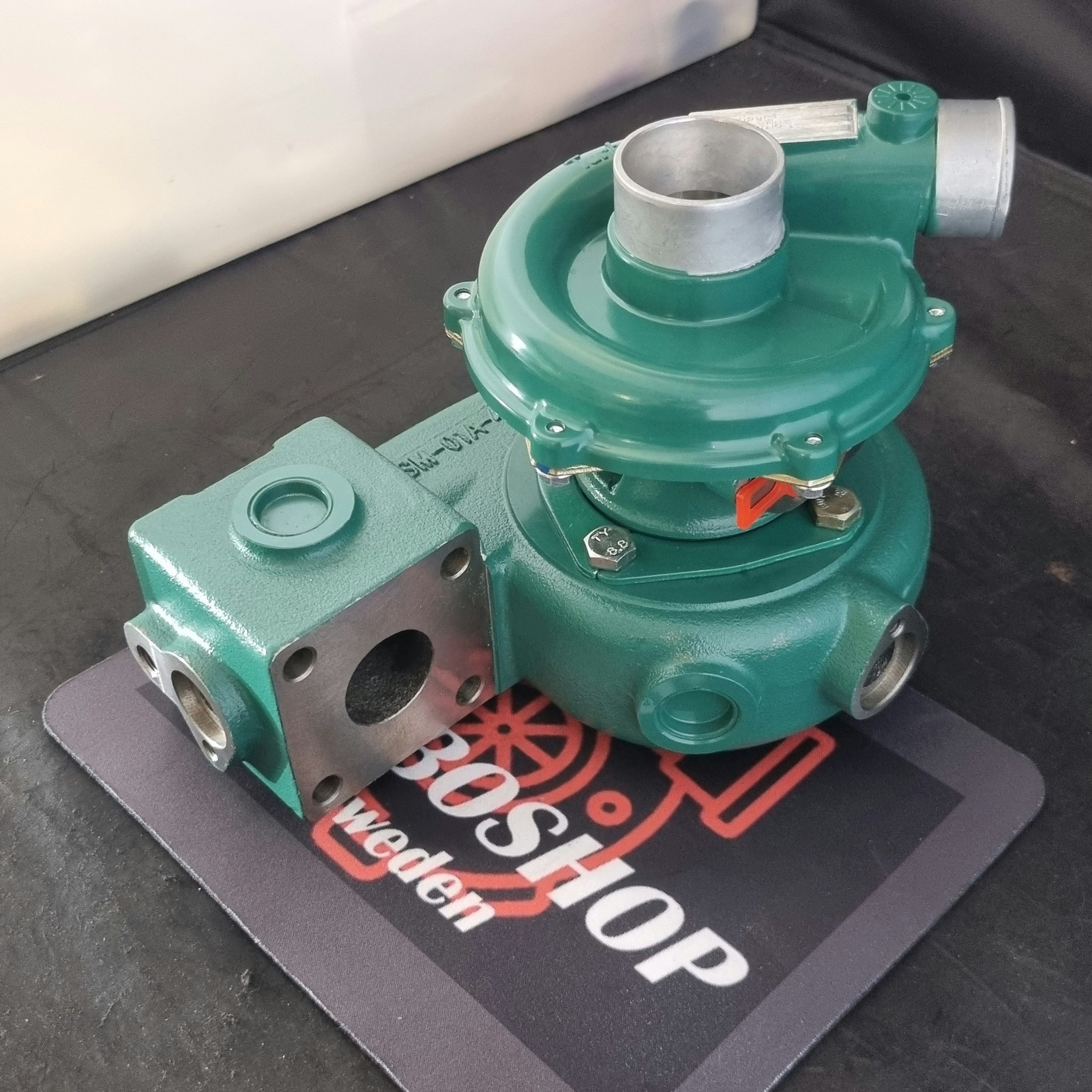

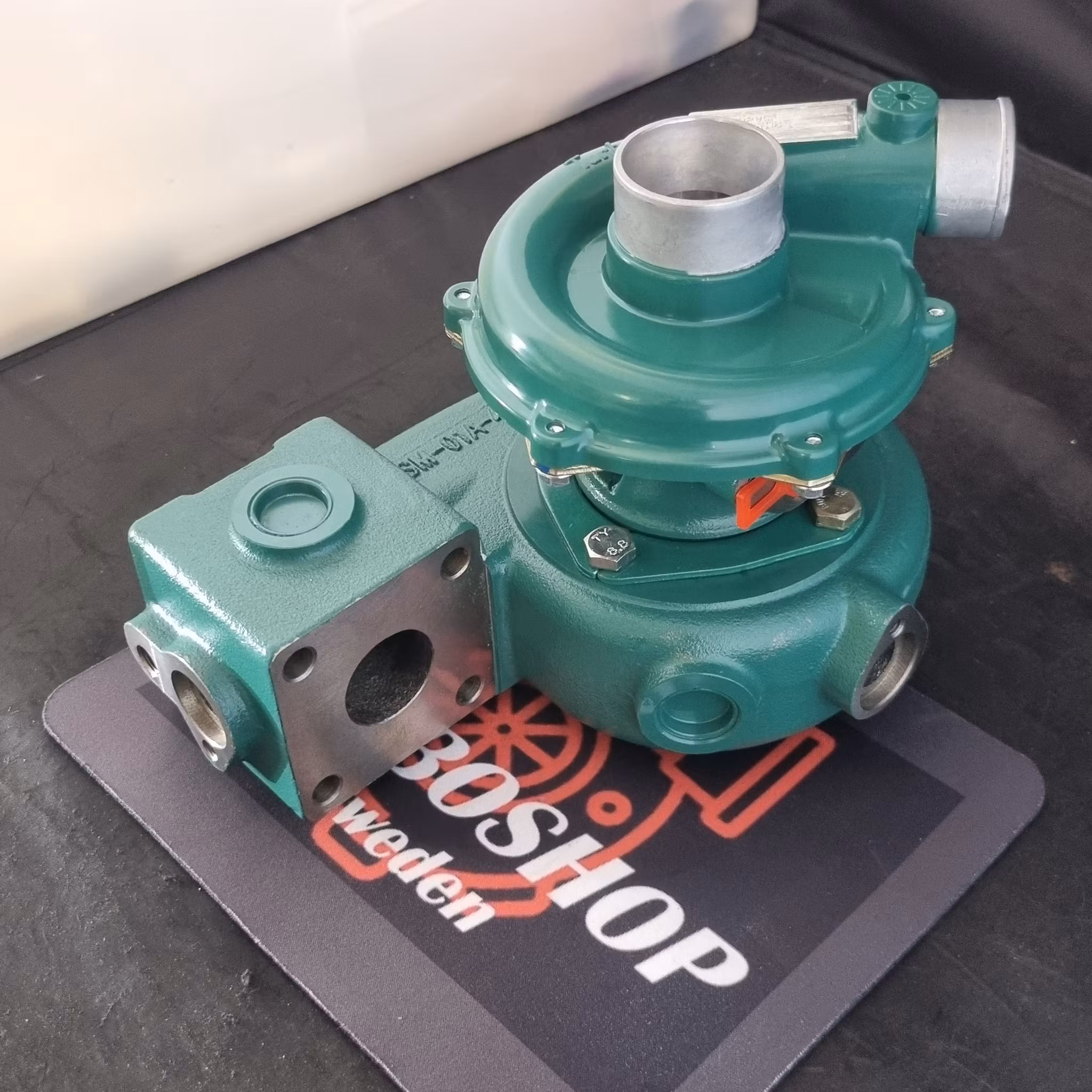

MV1 Volvo penta 2003T renoverad turbo ( Bytesturbo )
uppgraderad med rostfri hylsa för ooptimal livslängd.
Volvo Penta originalnummer : 840962 , NN130066
Turbonummer : MV1 , NN130066
Vanligt bekymmer med denna motor / turbo är att avgas ut på turbinhuset rostar igen vilket leder till att turbinaxeln ej kan snurr
Denna turbo målas Volvo penta grön innan den lämnar oss för bästa skydd emot rost samt utseende.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | NN130066 |
| OE Number | 840962, 840962-5, B58CND-S0066C, B58CNDS0066C |
| V-SPEC. | MV1, MV1E |
| Year | 1986-93 |
| Description | Marine, Truck |
| Manufacturer Part Number | 840962 |
| Turbo Model | RHB51FW-34001FP7NWBRS294D |
| CHRA | VA810014 $700.00 IN STOCK |
| Engine | TMD2003, TMD, 2003T, 2003T, 2003TB, 2003TB-SOLAS |
| NSN | 2950-01-388-2369, 2950013882369 |
| Trim | KAD42 |
| Engine Manufacturer | Sweden-Volvo Penta |
| Power | 45 HP |
| Capacity | 1280 ccm |
| Fuel | Diesel |
| Angle α (compressor housing) | 180° |
| Angle β (turbine housing) | 139.5° |
| Bearing Housing | NN133359 (NN133363, NN133396)(Oil Cooled)(1900011187) |
| Turbine Wheel | NN131002 (NN131628)(Ind. 34.93 mm, Exd. 48.92 mm, 9 Blades) |
| Comp. Wheel | NN136003 (Ind. 28. mm, Exd. 44.97 mm, 8 Blades, Flatback) |
| Back plate | NN133021 (64T-002)(NN133001)(1450052300, 1800016033) |
| Heat shield Number | NN137055 (NH365303)(38T-013) |
| Repair Kit | NN139921 (NN139921A, NN139922, 876058, 509T-530, 509T-545) |
| Turbine Housing (Water Cooled) | NN139462 |
| Compressor Cover | NN133982 |
| Turbine Housing AR | 7.0 |
| Gasket (turbine inlet) | 210854 (2445278)(Inox Steel) |
| Gasket (oil Inlet) | 210636 (1203715) |
| Gasket (oil outlet) | 2445277 (2 445 277) |
| NOTE | Also available in Reman. |
| Manufacturer | IHI |
Applications
1986-93 Volvo Penta Marine with TMD Engine
